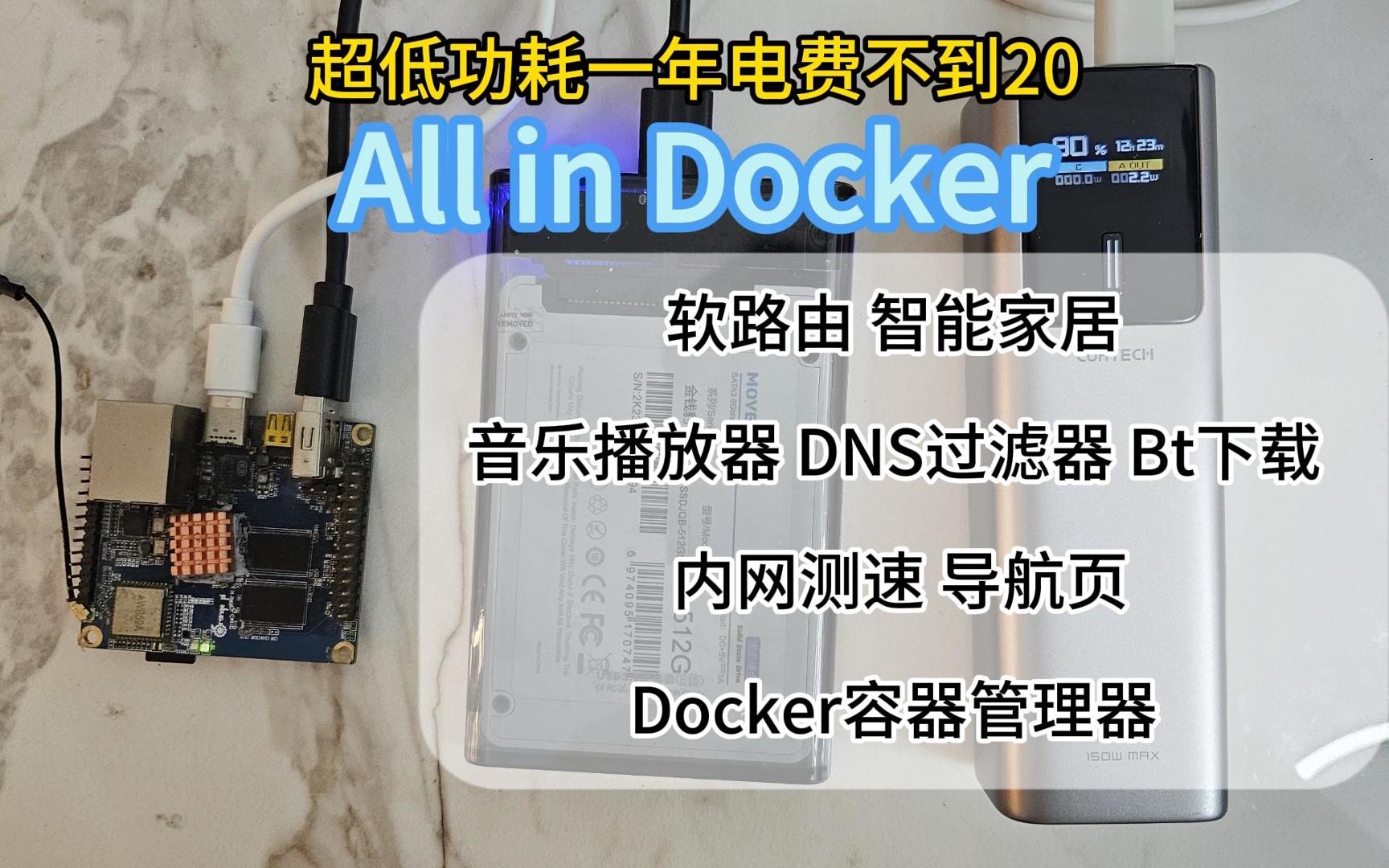

百元不到,超低功耗搭建ARM(x86通用) Linux All in Docker服务器

软路由Openwrt,DNS解析Adguardhome,导航页Homepage,智能家居Homeassistant,BT下载qBittorrent,音乐服务器Navidrome,网页文件管理FileBrowser,Docker管理Portainer,内网网页测速LibreSpeed

格式化和挂载USB硬盘

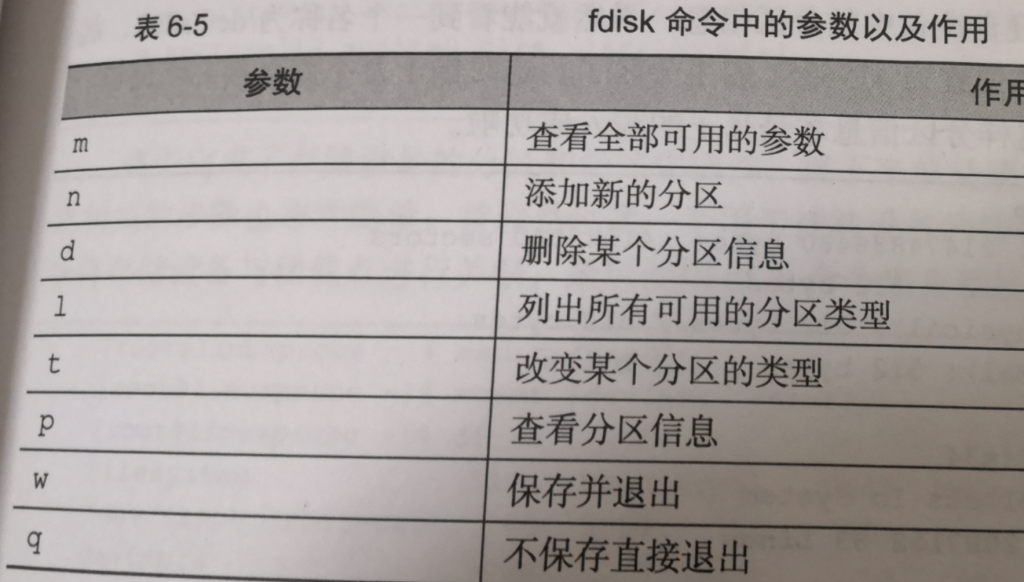

fdisk -l
fdisk /dev/sda
mkdir /mnt/usbdisk
nano /etc/rc.local
mount  /dev/sda1   /mnt/usbdisk
chmod +x /etc/rc.local

设置swap
dd if=/dev/mmcblk0p1 of=/root/swapfile bs=1M count=2048
chmod 600 /root/swapfile
mkswap /root/swapfile
swapon /root/swapfile
nano /etc/fstab
/root/swapfile none swap sw 0 0
nano /etc/default/armbian-zram-config
nano /etc/default/orangepi-zram-config

安装docker
apt update
curl -fsSL https://get.docker.com -o get-docker.sh
sh get-docker.sh
systemctl enable docker

安装_Docker管理Portainer
docker run -d -p 9000:9000 -p 9443:9443 --name portainer \
--restart=always \
-v /var/run/docker.sock:/var/run/docker.sock \
-v /home/docker/portainer_data:/data \
portainer/portainer-ce:latest

安装Openwrt
docker network create -d macvlan --subnet=192.168.3.0/24 --gateway=192.168.3.1 -o parent=eth0 macnet

docker run -d --name=openwrt --network=macnet --privileged=true --restart=always --ulimit nofile=16384:65536 -v /lib/modules/$(uname -r):/lib/modules/$(uname -r) summary/openwrt-aarch64:mini

安装_网页文件管理FileBrowser
docker run \
    -v /mnt/usbdisk:/srv \
    -v /home/docker/filebrowser/database:/database \
    -v /home/docker/filebrowser/config:/config \
    -e PUID=0 \
    -e PGID=0 \
    -p 8080:80 \
    filebrowser/filebrowser:s6

安装_DNS解析Adguardhome
docker run -d --name adguardhome -v /home/docker/adguardhome/data:/opt/adguard/data -v /home/docker/adguardhome/conf:/opt/adguard/conf adguard/adguardhome

nano /etc/dnsmasq.conf

安装_下载器qBittorrent
docker run -d \
  --name=qbittorrent \
  -e PUID=0 \
  -e PGID=0 \
  -e TZ=Asia/shanghai \
  -e WEBUI_PORT=8088 \
  --net=host \
  -v /home/docker/qbittorrent:/config \
  -v /mnt/usbdisk/downloads:/downloads \
  --restart unless-stopped \
  linuxserver/qbittorrent

安装_智能家居管理Homeassistant
docker run -d \
  --name homeassistant \
  --restart=unless-stopped \
  -e TZ=Asia/Shanghai \
  -v /home/docker/homeassistant:/config \
  --network=host \
  homeassistant/home-assistant:latest

安装_导航页Homepage
docker run --name homepage  --e PUID=0 --e PGID=0   --p 80:3000  --v /home/docker/homepage:/app/config   --v /var/run/docker.sock:/var/run/docker.sock:ro  --restart unless-stopped ghcr.io/gethomepage/homepage:latest

services.yaml
- Docker:
    - Librespeed:
        icon: librespeed.png
        href: http://192.168.3.219:5555
    - filebrowser:
        icon: filebrowser.png
        href: http://192.168.3.219:8080
    - Portainer:
        icon: portainer.png
        href: http://192.168.3.219:9000
        widget:
          type: portainer
          url: https://172.17.0.2:9443
          env: 2
          key: ptr_QRynk3dD7h/yt6u7NWf4Ycay2pkWmWdzXfjtqbBwc7I=
    - Homeassistant:
        icon: home-assistant-alt.png
        href: http://192.168.3.219:8123
        widget:
          type: homeassistant
          url: http://192.168.3.219:8123
          key: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJlZjA0ZGI1OTY3MWM0NjUyODI5YWRiMWQ4YmRmNjlhZiIsImlhdCI6MTcyNjE4NjEwMCwiZXhwIjoyMDQxNTQ2MTAwfQ.lyYBFIOeuWM_coL8VE8H_bKI1KTbKsOIEmncZHb9cAY
    - Adguard Homer:
        icon: adguard-home.png
        href: http://192.168.3.219:8111
        widget:
          type: adguard
          url: http://192.168.3.219:8111
          username: xc
          password: zhangsan1@
    - qBittorrent:
        icon: qBittorrent.png
        href: http://192.168.3.219:8088
        widget:
          type: qbittorrent
          url: http://192.168.3.219:8088
          username: admin
          password: adminadmin
    - Navidrome:
        icon: navidrome.png
        href: http://192.168.3.219:4533
        widget:
          type: navidrome
          url: http://192.168.3.219:4533
          user: xc
          token: fefaf275a5162c97d411c4687a00a38a
          salt: c19b2d

settings.yaml
language: zh-CN
title: 小陈折腾日记

安装_音乐服务器Navidrome
docker run -d \
   --name navidrome \
   --restart=unless-stopped \
   -v /mnt/usbdisk:/music \
   -v /home/docker/navidrome:/data \
   -p 4533:4533 \
   -e ND_LOGLEVEL=info \
   deluan/navidrome:latest

https://miniwebtool.com/zh-cn/md5-hash-generator/

安装_内网网页测速LibreSpeed
docker run -d --name speedtest -e WEBPORT=5555 --network=host ghcr.io/librespeed/speedtest

安装SMB
apt install samba

[udisk]
  comment = Media
  public = Yes
  path = /mnt/usbdisk
  browseable = Yes
  read only = No
  guest ok = Yes
  create mask = 0777
  directory mask = 0777
  force user = root

systemctl  status  smbd
systemctl  restart  smbd
